Slab Scissor Lifts
Quick Comparison
| Product | Max Platform Height | Machine Width | Machine Length | Platform Capacity | Machine Weight |
|---|---|---|---|---|---|
| NANO10®-XD | 9.8 ft | 30 in. | 45.5 in. | 500 lbs. | 1,235 lbs. |
| 1330SE Micro | 13 ft. | 31.5 in. | 57 in. | 530 lbs. | 2,050 lbs. |

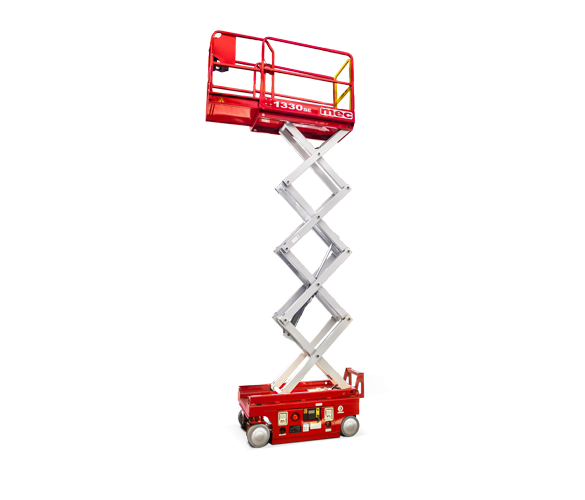

| Micro 13®-XD | 13 ft. (+20 in.*) | 31.5 in. | 57 in. | 500 lbs. | 2,116 lbs. |

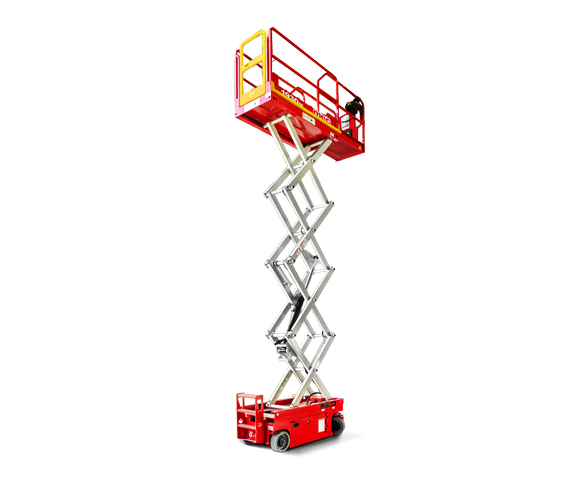

| 1930SEAC Slim | 19 ft. | 30 in. | 73 in. | 550 lbs. | 3,440 lbs. |

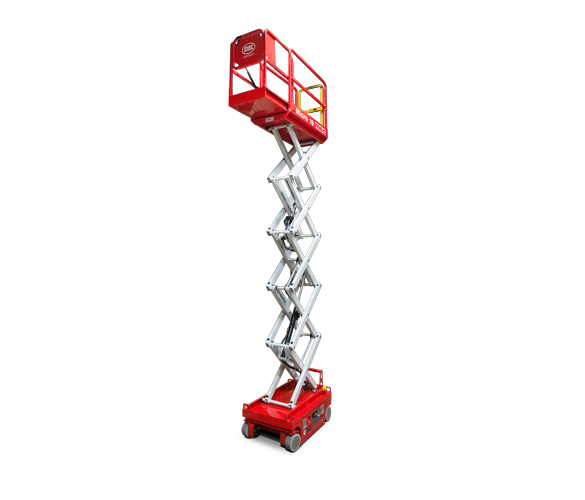

| Micro 19® | 19 ft. | 32 in. | 60 in. | 500 lbs. | 2,860 lbs. |
| Micro 19®-XD | 19 ft. (+20 in.*). | 32 in. | 60 in. | 500 lbs. | 2,820 lbs. |

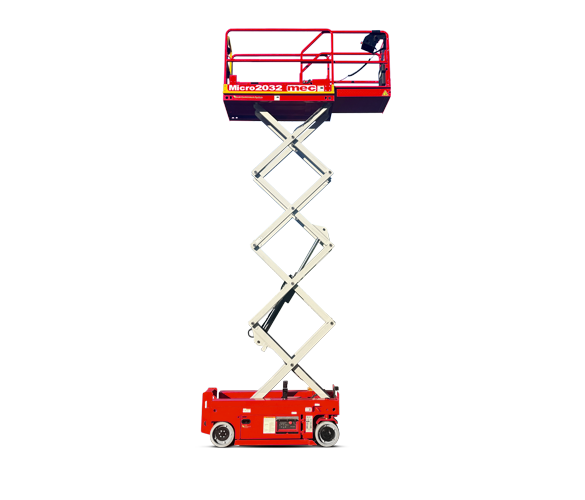

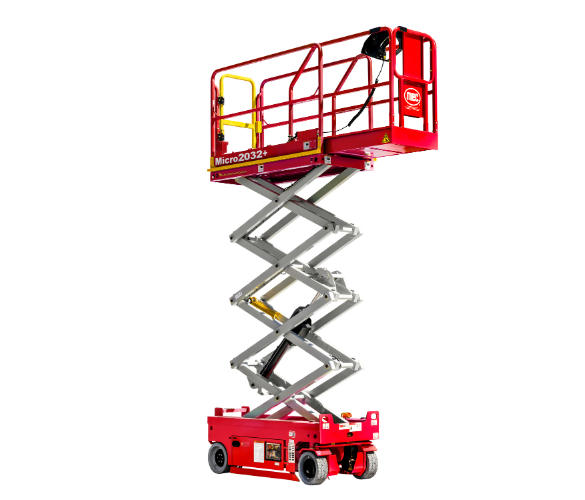

| Micro 2032 | 20 ft. | 32.2 in. | 68 in | 800 lb. | 3.640 lb. |
| Micro 26®AC | 26 ft. | 32 in. | 74 in. | 550 lbs. | 4,190 lbs. |

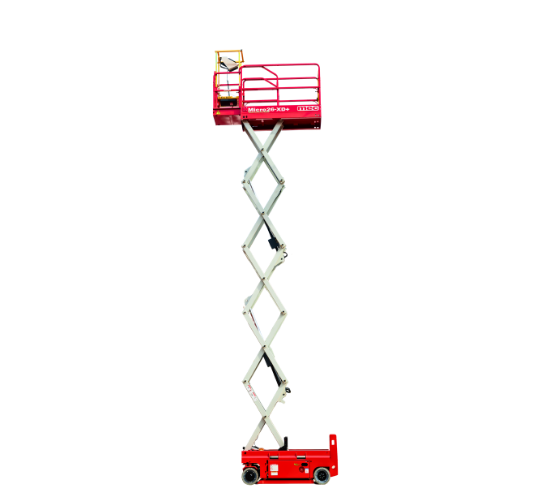

| Micro 26®-XD | 26 ft. | 32 in. | 74 in. | 550 lbs. | 4,450 lbs. |

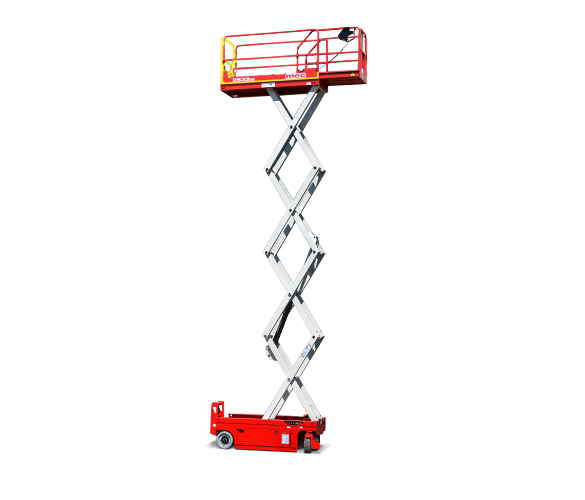

| 2632SEAC Slim | 26 ft. | 32 in. | 97 in. | 550 lbs. | 4,870 lbs. |

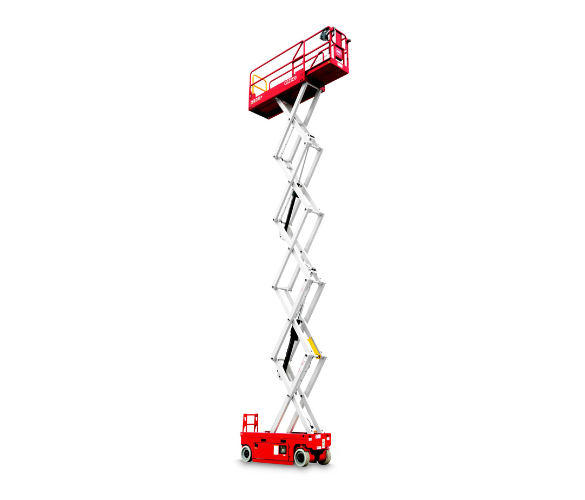

| 3232SE | 32 ft. | 32.7 in | 97 in. | 550 lbs. | 7,145 lbs. |

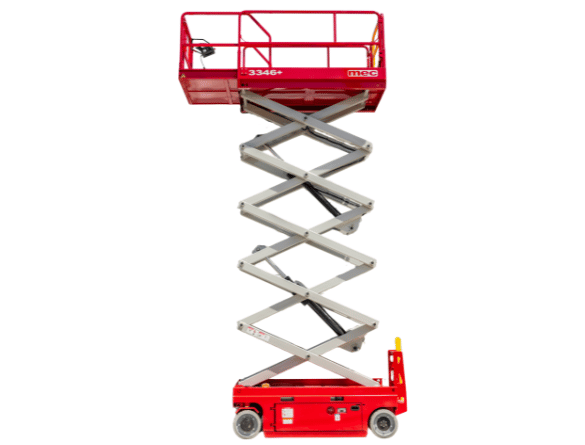

| 3346SEAC Compact | 33 ft. | 47 in. | 97 in. | 800 lbs. | 5,670 lbs. |

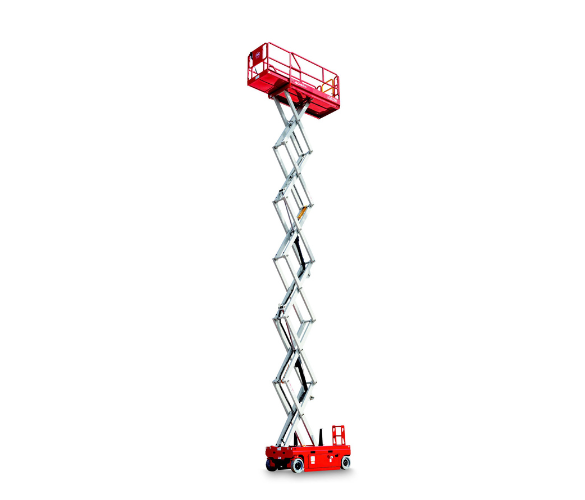

| 4046SEAC Compact | 39 ft. | 47 in. | 98 in. | 750 lbs. | 7,140 lbs. |

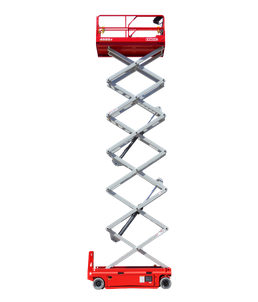

| 4555SEAC Compact | 45 ft. | 55 in. | 112 in. | 750 lbs. | 7,760 lbs. |
(XD) Xtra-Deck® adds 20 in. when in use
A Better Solution
Innovation & FeaturesLCS is a system of trays integrated to contain leaks and protect flooring while not interfering with safe machine operation. The system is integrated under the component tray and above the belly plate to protect the system from weather elements, forklifts, and jobsite debris. This integrated design does not cover and restrict access to base controls or emergency lowering functions.
Powered for high efficiency, better performance and higher product residual value. Our Direct Electric Drive offers longer operating times between battery charges, as well as, offering faster quieter and smoother operation for confined areas.
Control orientation angled away from the operator while proactively being warned of an overhead hazard. Control orientation angled away from the operator so potential entrapment situations are mitigated by a resulting downward movement. Combined with MEC’s PPSS option, operators are proactively warned of an overhead hazard to mitigate collision and entrapment.
