3232SE

MEC’s broad range of Micro class slab scissor lifts features the tallest in the line at 32ft platform height

Lightweight

Micro Scissor design with true slide-out deck and low floor loading (Uniform Pressure: 357 lbs., Max. Localized Pressure: 224 lbs.)

Ultracompact Design

Fits on most elevators and into tight work areas

AC Electric Drive

Exceptional duty cycle with standard AGM batteries and higher residual value

Want a PDF of this brochure?

DOWNLOAD BROCHURE

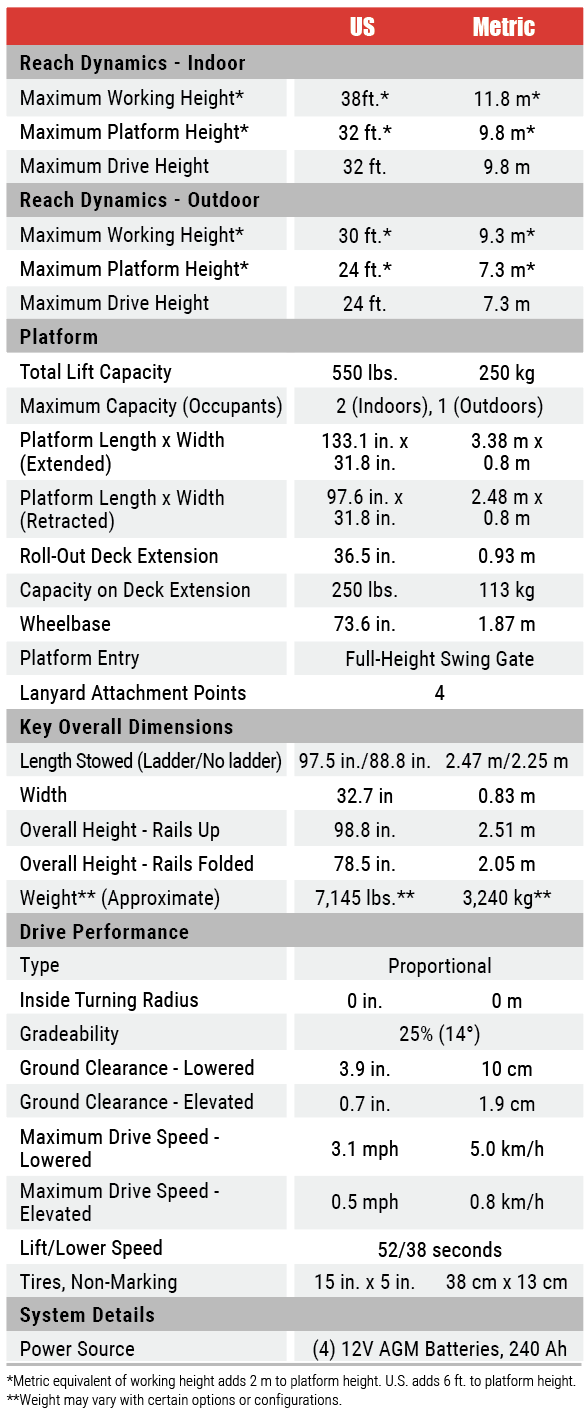

Product Specs

32 ft.

Platform Height

32.7 in

Machine Width

97 in.

Machine Length

550 lbs.

Platform Capacity

7,145 lbs.

Machine Weight

Standard Features

Work Area
Roll Out Deck Extension with Incremental Locking Positions
Full Height Swing Gate
Lanyard Attachments (4)

Performance
Drive at Full Height Indoor
No Outriggers
AC Electric Drive
Fully Proportional Drive and Lift Controls
Up To 25% Gradeability

Power
Maintenance Free AGM Batteries
Battery Charge Indicator

Serviceability
Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components in Swing Out Trays
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety
Dedicated Compartments Protect Electrical and Hydraulic Components
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Multi-Axis Tilt Sensor
Multiple Disk Brakes
Scissor Maintenance Lock
Multiple Disc Brakes

Other Features
Leak Containment System® (LCS) Patent Number 11,112,060
Removable Upper Controls
Fold-Down Guardrails
Voltage-Compensating Fully
Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All-Motion Alarm
Fork Lift Pockets
Flashing Beacon

Highlights

Drive at Full Height Indoors Saving Time and Battery Energy Between Overhead Tasks
Greater Productivity and Lower Cost of Ownership with Outrigger-Free Design
AC Electric Drive for Extended Duty Cycle, Smoother Control and Faster Drive Speeds
Spacious 2-Person Platform (Indoors)/1-Person Platform (Outdoors) with 500 lb. (227 kg) Capacity
Standard Swing Gate
Fully Proportional Lift and Drive Controls
Compact Maneuverability from Front Wheel Drive and Steer with Zero Inside Turn Radius
Maintenance-Free AGM Batteries

Options

900W Inverter
Tool Tray
Cold Weather Package
Second Year Extended Warranty
Pipe Rack
Upper Control Box Supplementary Guard
Proactive Platform Safety System (PPSS)

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Featured Options

Integrated Leak Containment System® (LCS) Patent Number 11,112,060

Contain leaks and protect flooring while not interfering with safe machine operation

900W Inverter

On board AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords

Pipe Rack

Factory designed and authorized device for safe pipe handling that keeps the platform clear and unobstructed
