4555SEAC Compact


MEC’s full line of slab scissor lifts features the industry’s tallest class at 45ft platform height compact scissor
AC Electric Drive

Exceptional duty cycle with standard maintenance free batteries and higher residual value

Full-Featured Design

High spec standard features include power-to-platform, on-board diagnostic and more

Extended Duty Cycle

High energy efficiency lift and drive lasts through the day for extended productivity

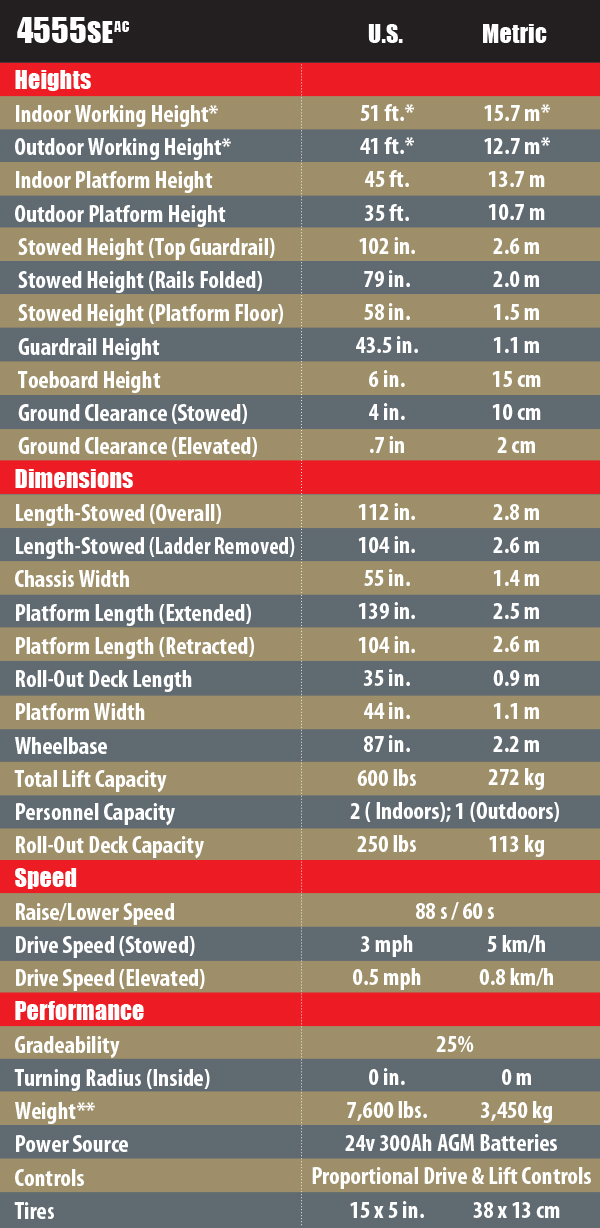

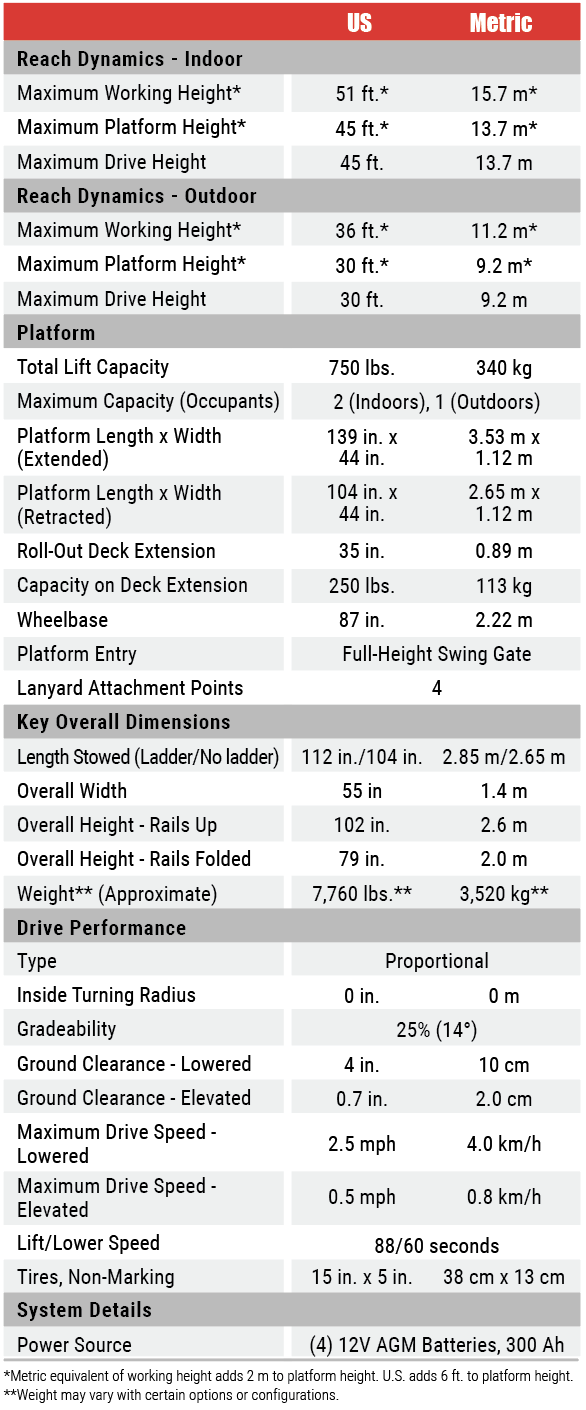

Product Specs


45 ft.
Platform Height
55 in.
Machine Width
112 in.
Machine Length
750 lbs.
Platform Capacity
7,760 lbs.
Machine Weight

Standard Features

Work Area
Roll-Out Deck Extension with Incremental Locking Positions
Full Height Swing Gate
Lanyard Attachments (4)

Performance
AC Electric Drive
Fully Proportional Drive and Lift Controls

Power
24v 300Ah DC Electric Power
Battery Charge Indicator

Serviceability
Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components in a Slide-Out Tray
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety
Dedicated Compartment Protects Electrical and Hydraulic Components
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Multi-Axis Tilt Sensor
Scissor Maintenance Lock
Multiple Disc Brakes

Other Features
Leak Containment System® (LCS) Patent Number 11,112,060       Removable Upper Controls
Voltage-Compensating Fully Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pockets
Flashing Beacon (Continuous)

4555SE_600_px_wide_3-2024

Highlights

45 ft. (13.7 m) Platform Height and 51 ft. (15.7 m) Working Height

Drives Indoors at Full 45 ft. (13.7 m) Platform Height / Drives Outdoors at 35 ft. (10.7 m) Platform Height

55 in. (1.4m) Overall Width for Narrow Aisles and Doorways

AC Electric Drive for Extended Duty Cycle, Smoother Control and Faster Drive Speed

Zero Inside Turning Radius

Drivable at Full Height

Fully Proportional Lift and Drive Controls

Roll-out Deck Extension with Incremental Lock Position

Standard Swing Gate

Leading Value Solution for 51 ft. (15.7 m) Working Height

2-Person Platform (Indoors)/ 1-Person Platform (Outdoors) with 750 lb. (340 kg) Capacity Drives Indoors at Full Height on 55″ (1.4 m) Wide Base

Options

900W Inverter
Tool Tray
Pipe Rack
Second Year Extended Warranty                                                                              Cold Weather Package                                                                                              Upper Control Box Supplementary Guard

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Featured Options

Integrated Leak Containment System® (LCS) Patent Number 11,112,060
Contain leaks and protect flooring while not interfering with safe machine operation
900W Inverter
On board AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords
Pipe Rack
Factory designed and authorized device for safe pipe handling that keeps the platform clear and unobstructed

Operator's Manual
Download PDF
Service & Parts Manual
Download PDF
Schematic Diagrams
Download PDF
Familiarization
Download PDF
