4555AE


MEC’s full line of slab scissor lifts features the industry’s tallest class at 45ft platform height compact scissor
Extended Duty Cycle

High energy efficiency lift and drive lasts through the day for extended productivity

Full-Featured Design

High spec standard features include power-to-platform, on-board diagnostic and more

All-Electric Lift, Drive and Steer

No hydraulic oil, zero risk of leaks

DOWNLOAD BROCHURE

Discover the Benefits of Going MEC

Committed to Safety

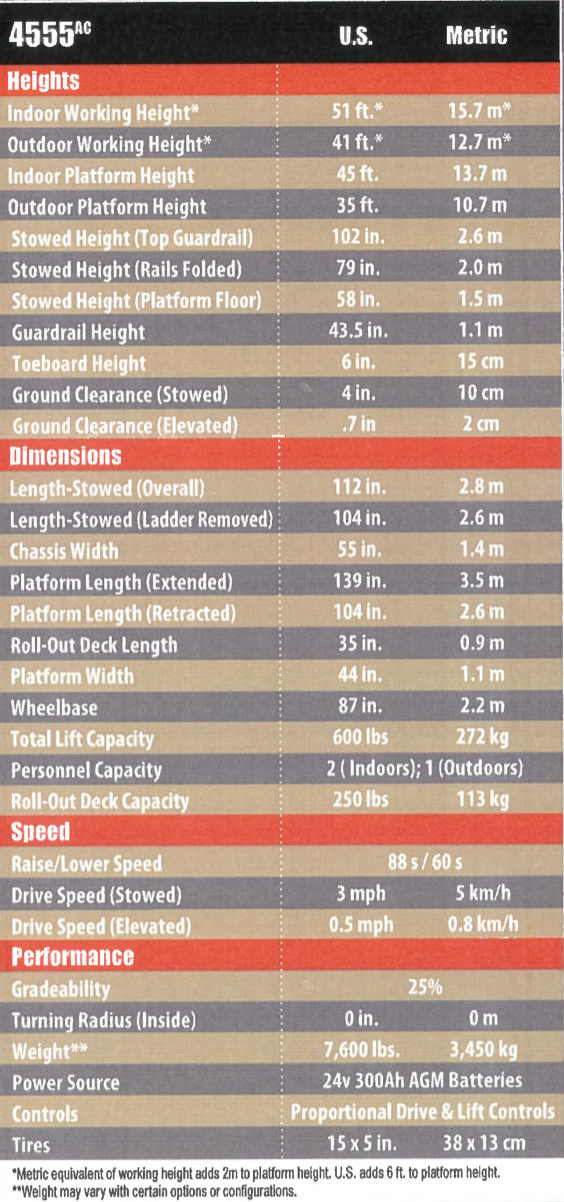

Product Specs


45 ft.
Platform Height
55 in.
Machine Width
112 in.
Machine Length
600 lbs.
Platform Capacity
7,600 lbs.
Machine Weight

Standard Features

Work Area
Roll-Out Deck Extension with Incremental Locking Positions
Standard Swing Gate
Lanyard Attachments (4)

Performance
All-Electric Optimal Battery Duty Cycle                                                Zero Hydraulic Oil                                                                                      Fully Proportional Drive and Lift Controls

Power
24v 300Ah DC Electric Power
Battery Charge Indicator

Serviceability
Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components in a Slide-Out Tray
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety
Dedicated Compartment Protects Electrical and Hydraulic Components
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Multi-Axis Tilt Sensor
Scissor Maintenance Lock
Multiple Disc Brakes

Other Features
Removable Upper Controls
Voltage-Compensating Fully Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pockets
Flashing Beacon (Continuous)

Highlights

45 ft. (13.7 m) Platform Height and 51 ft. (15.7 m) Working Height

Drives Indoors at Full 45 ft. (13.7 m) Platform Height / Drives Outdoors at 35 ft. (10.7 m) Platform Height

55 in. (1.4m) Overall Width for Narrow Aisles and Doorways

All-Electric Optimal Battery Duty Cycle

Zero Inside Turning Radius

Drivable at Full Height

Fully Proportional Lift and Drive Controls

Roll-out Deck Extension with Incremental Lock Position

Standard Swing Gate

Leading Value Solution for 51 ft. (15.7 m) Working Height

2-Person Platform (Indoors)/ 1-Person Platform (Outdoors) with 600 lb. (272 kg) Capacity Drives Indoors at Full Height on 55″ (1.4 m) Wide Base

Options

900W Inverter
Tool Tray
Pipe Rack
Second Year Extended Warranty                                                                              Cold Weather Package                                                                                              Upper Control Box Supplementary Guard

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Featured Options

Pipe Rack
Factory designed and authorized device for safe pipe handling that keeps the platform clear and unobstructed
900W Inverter
On board AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords
All-Electric Lift, Drive and Steer
No hydraulic oil, Zero risk of leaks
