Micro 19®


MEC’s broad range of Micro class slab scissor lifts features the most popular in the line at 19ft platform height.
Lightweight

Micro Scissor design with true slide-out deck and low floor loading (Uniform Pressure: 224 lbs., Max. Localized Pressure: 112 lbs.)

Ultracompact Design

Fits on most elevators and into tight work areas

Direct Electric Drive

Exceptional duty cycle with standard AGM batteries and higher residual value

Product Specs


19 ft.
Platform Height
32 in.
Machine Width
60 in.
Machine Length
500 lbs.
Platform Capacity
2,860 lbs.
Machine Weight

Standard Features

Work Area
Roll-Out Deck Extension with Incremental Locking Positions
Full Height Swing Gate
Lanyard Attachments
110v Power to Platform

Performance
Direct Electric Drive
Fully Proportional Drive and Lift Controls
Up To 25% Gradeability

Power
24v 115Ah AGM DC Electric Power (Maintenance-Free Batteries)
Battery Charge Indicator
Single 110v Receptacle to Chassis for Common Plug Connection for Battery Charger and Power to Platform

Serviceability
Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety
Lift Control Orientation Designed to Mitigate Overhead Entrapment
Dedicated Compartments Protect Electrical and Hydraulic Components
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Scissor Maintenance Lock
Multi-Axis Tilt Sensor
Multiple Disc Brakes
Automatic Parking Brake

Other Features
Leak Containment System® (LCS) Patent Number 11,112,060     Removable Upper Controls
Voltage-Compensating Fully Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pockets
Flashing Beacon (Continuous)

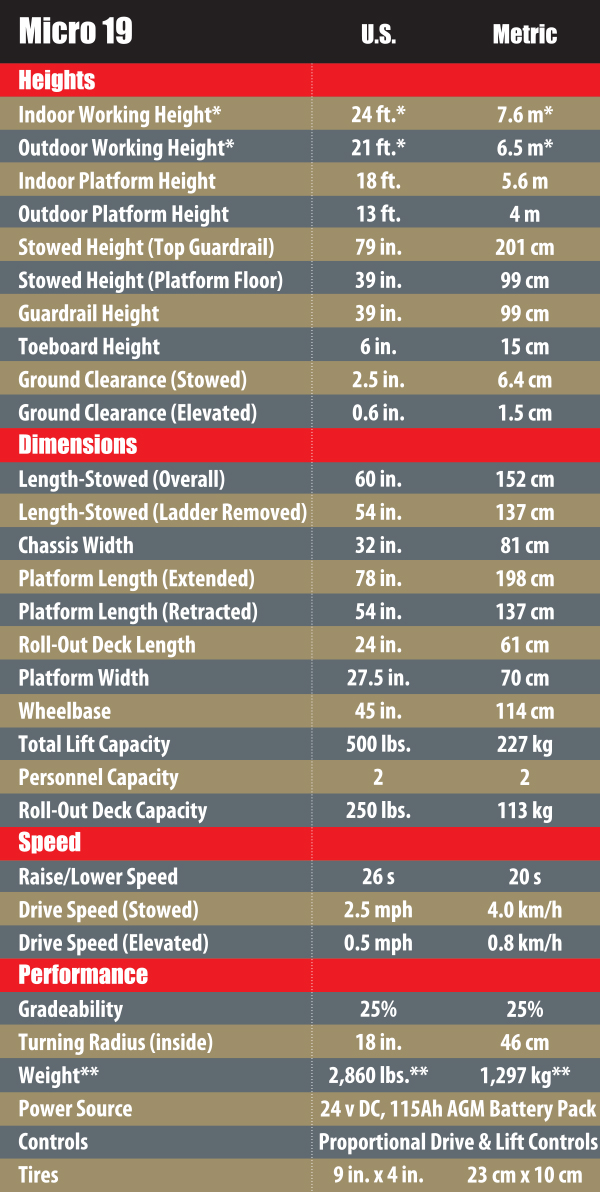

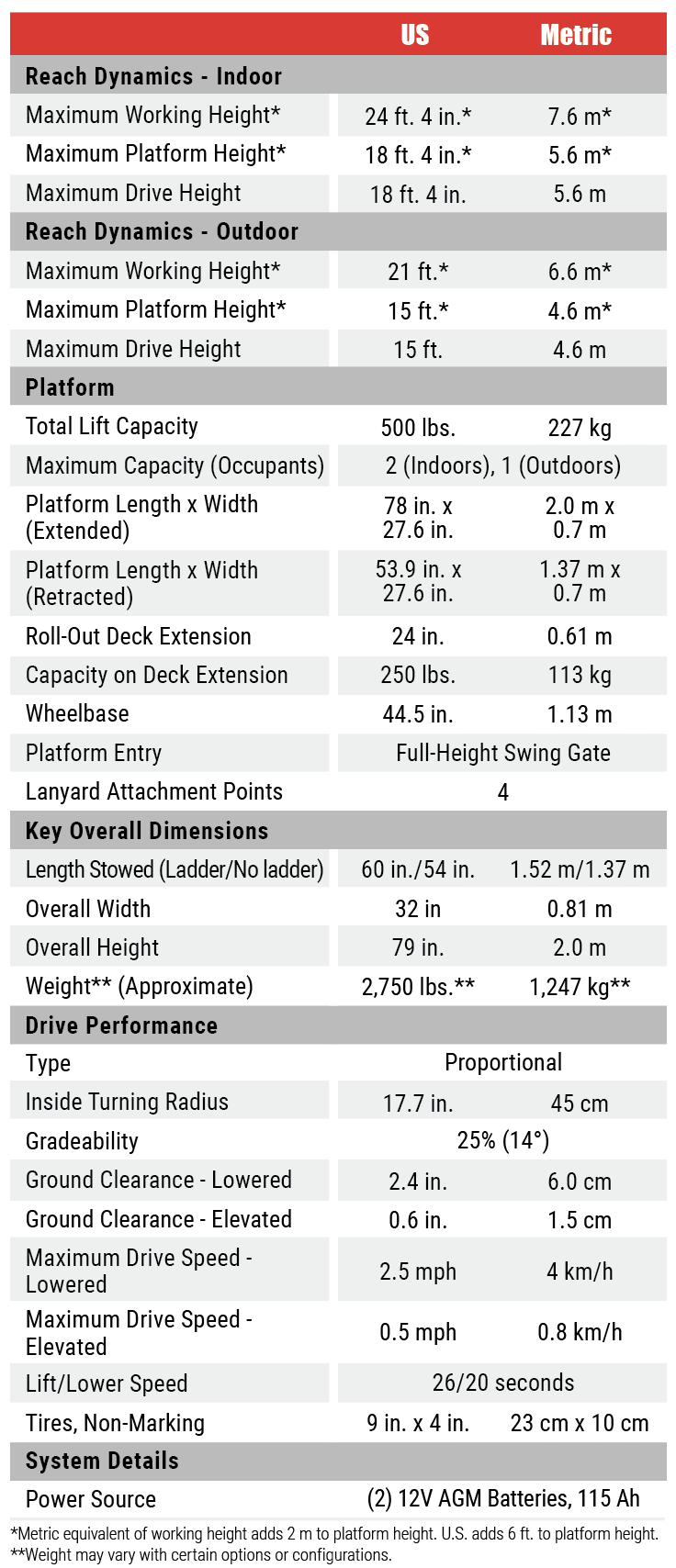

Micro19 grid

Highlights

Compact Size Yet Still Provides a  Generous Work Area

Fits on Most Elevators with Shortest Overall Length and Low GVW (Gross Vehicle Weight)

24 in. (61 cm) Roll-Out Deck Extension with Incremental Lock Positions

Direct Electric Drive for Extended Duty Cycle, Smoother Control and Fewer Leak Points

2-Person Platform with 500 lb. (227 kg) Capacity

Fully Proportional Lift and Drive Controls

Options

900W Inverter
Tool Tray
Pipe Rack
Proactive Platform Safety System® (PPSS)
Second Year Extended Warranty

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Featured Options:

Integrated Leak Containment System® (LCS) Patent Number 11,112,060
Contain leaks and protect flooring while not interfering with safe machine operation
900W Inverter
On board AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords
Pipe Rack
Factory designed and authorized for safe pipe handling that keeps the platform clear and unobstructed
