NANO10®-XD


MEC’s broad range of Micro class slab scissor lifts features the smallest in the line at 10ft platform height, all-electric with Xtra-Deck® innovation.
Ultra-Compact Design

Compact dimensions allow access to tight and hard-to-reach areas

All-Electric Drive

All-electric lift, steer, and drive ensures optimal energy efficiency and eliminates risk of hydraulic oil leaks

Built for Specialty Applications

Lightweight design makes it perfect for use on sensitive flooring and in cold environments

DOWNLOAD BROCHURE

Discover the Benefits of Going MEC

Committed to Safety

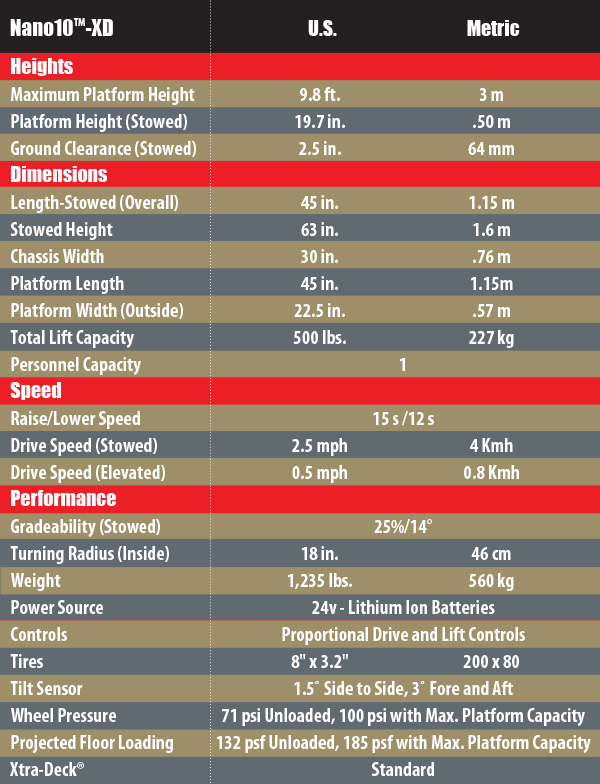

Product Specs


9.8 ft
Platform Height
30 in.
Machine Width
45.5 in.
Machine Length
500 lbs.
Platform Capacity
1,235 lbs.
Machine Weight

Standard Features

Work Area
Xtra-Deck Additional 20-inch height Platform Patent Pending
Full Height Swing Gate
Ground to Platform Step Height – No Ladder
Lanyard Attachment
5v USB Charging Port at the Platform Control Box

Performance
All-Electric Drive Lift/Steer/Drive
Fully Proportional Drive and Lift Controls
Up To 25% Gradeability

Power
24v DC, 63 Ah Lithium-Ion Battery Pack (Maintenance Free)
Battery Charge Indicator

Serviceability
Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety
Xtra-Deck Solution to Standing on the Midrails Hazard
Lift Control Orientation Designed to Mitigate Overhead Entrapment
Emergency Shut-Off at Platform and & Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Scissor Maintenance Lock
Multi-Axis Tilt Sensor
Multiple Disc Brakes
Automatic Parking Brake

Other Features
Removable Upper Controls
Voltage-Compensating Fully-Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pockets
Flashing Beacon (Continuous)

Nano 600 wide toss

Highlights

All-Electric Lift, Steer & Drive (No Hydraulic Oil)

Pull-Down Xtra-Deck give additional 20 in. (50 cm) Height for 1 Person

Lithium-Ion Maintenance-Free Batteries Standard

Food and Pharmaceutical, Data Centers, and Hospitality Applications

Ladderless Ground-level entry with Full Height and Swing Gate

Fully proportional Drive and Lift Controls

63 in. (1.6 m) Overall Height – No Folding Rails to Get Thru Doorways

Lightweight Design (1,235 lbs./560 kg) Allows Usage on Restricted Floor Loading Applications and in all Elevators

Optional Features

Cold Weather Package
Upper Control Box Cover
Proactive Platform Safety System® (PPSS)
Second Year Extended Warranty
